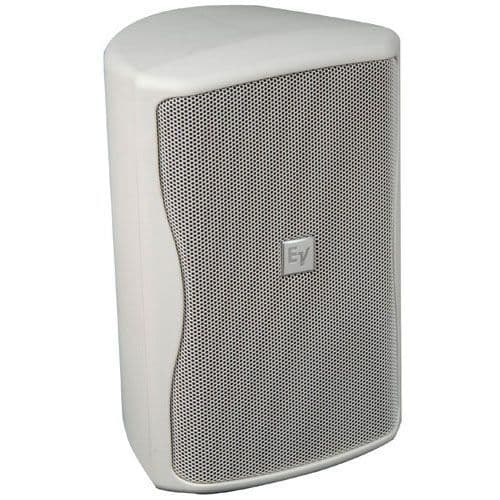

ELECTRO-VOICE Altavoz Pasivo BLANCO ZX 1-90W Altavoz 2 Vias 200 W.

Caja compacta de 2 vías full range. Potencia de 200W - 8Ohm. Sensibilidad de 94 dB 1W/1m, (123db SPL max). 1 x 8" (EV8L), 1 x 1" (DH2005). Dispersión de 90º x 50º. Conector Speakon. Incluye adaptador para tintero. Color blanco.

CARACTERISTICAS:

Freq. Response1 (-3 dB): 60 Hz - 20 kHz
Freq. Range1 (-10 dB): 48 Hz - 20 kHz
Rec. Hipass Frequency: 40 Hz
Axial Sensitivity1: 94 dB (1W/1m)
Max Calculated SPL: 123 dB
Horizontal Coverage: 90° or 50°
Vertical Coverage: 50° or 90°
Rated System Power: 200W Cont.2, 400W Prog., 800W Peak
LF Transducer: EV8L, 8 in (203mm) Driver
HF Transducer: DH2005, 1 in. (25.4mm) Exit Compression Driver
Crossover Frequency: 1.7 kHz
Nominal Impedance: 8 Ohms
Minimum Impedance: 6 Ohms
Connectors: Neutrik Speakon NL4
Enclosure Material: High Impact Polymer
Grille: Polyester Powder Coated, 18GA Galvanized Steel
Dim (H x W x D): 457mm x 282mm x 264mm(17.98" x 11.12" x 10.38")
Net Weight: 8.4 kg (18.5 lbs)
Shipping Weight: 10.2 kg (22.5 lbs)

+ Información ELECTROVOICE ZX1-90W
