Módulo para sintetizador modular

Módulo Eurorack
Filtro analógico y VCA
Filtro de paso bajo de 24 dB con controles manuales para frecuencia de corte y resonancia
2 entradas de señal ajustables
2 entradas CV con atenuadores para VCF y VCA
Entrada 'keytracking' para VCF con atenuador (1V / Oct.)
VCA incorporado con perilla de control de ganancia e interruptor selector para una respuesta lineal o exponencial
Consumo de corriente: 22 mA (+12 V) / 20 mA (-12 V)
Anchura: 16 HP
Profundidad: 43 mm

Product Features

Modular Synthesis

The first 2500 series synth modules came out in the 70s and tended to be extremely expensive. They were mainly all discrete transistor designs with some op-amps as at the time op-amps were high cost. The discrete circuitry gave the modules a very distinctive sound and were used by artists like The Who, Jean Michel Jarre, Vangelis, Kraftwerk and so many more, giving us some of the greatest records and film soundtracks we’ve ever heard. Modular synths were a landmark development in electronic music and today, it’s about to get better.

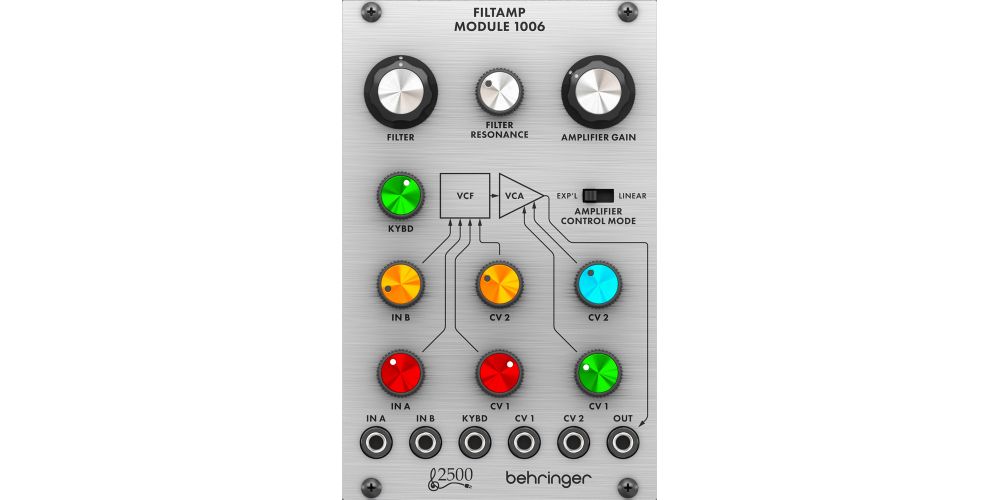

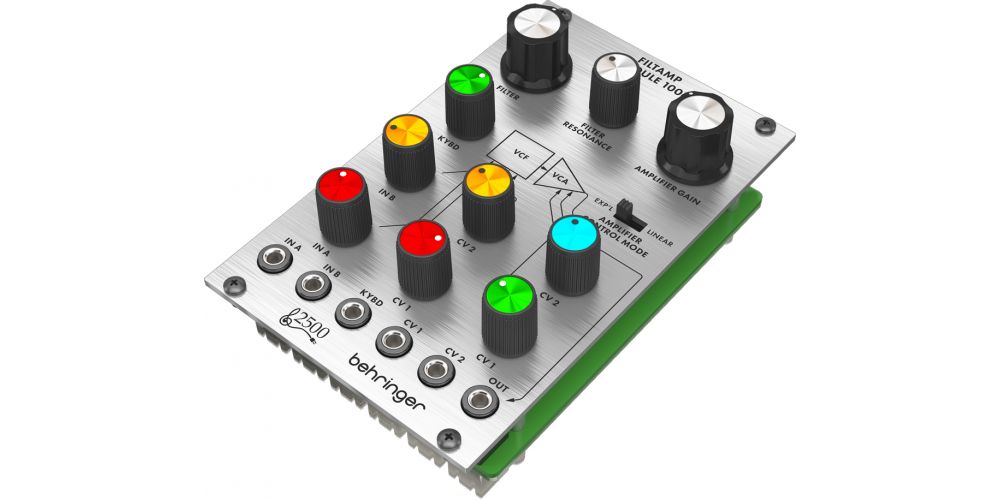

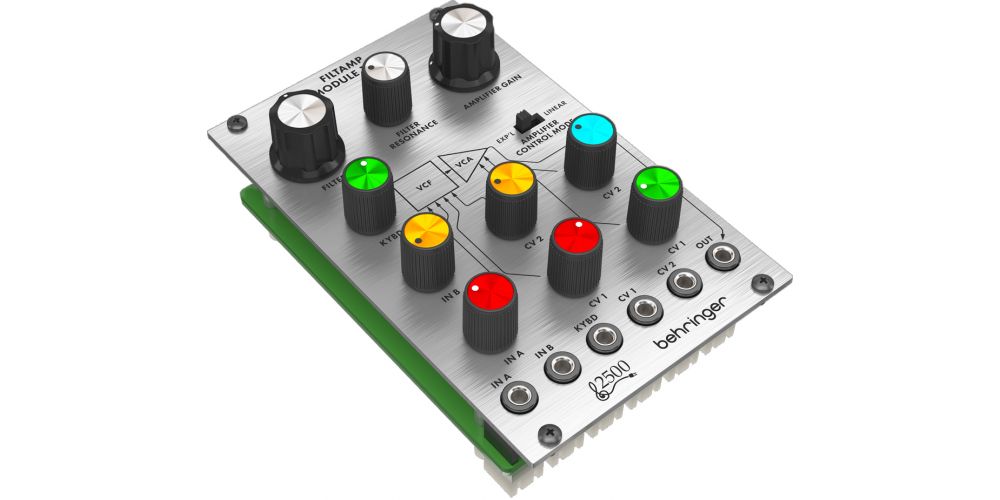

FILTAMP MODULE 1006

This is the Behringer 2500 series FILTAMP MODULE 1006. An authentic reproduction of the original “System 2500” circuitry from the 70’s that can fit in a standard Eurorack case. The best part? It’s at a very affordable price. Mix the FILTAMP MODULE 1006 in with your existing rig or start your modular synth journey from here. Either way you’re sure to have a lot of fun.

Filter and VCA

The FILTAMP MODULE 1006 is a classic voltage controlled 24 dB per octave low pass filter, the filter is a matched transistor ladder design followed by a matched transistor VCA for a vintage sound. The 1006 filter is equipped with a filter frequency control, a resonance control capable of self-oscillation, 3 summed CV inputs all with independent attenuators for maximum flexibility, the 2 filter signal inputs are also equipped with 2 dedicated attenuators so act as an input mixer.

The VCA has an amplifier gain control which is summed with the CV inputs, an exponential or linear response switch and 2 summed CV inputs with attenuators. All this lets you shape your sound to perfection.
