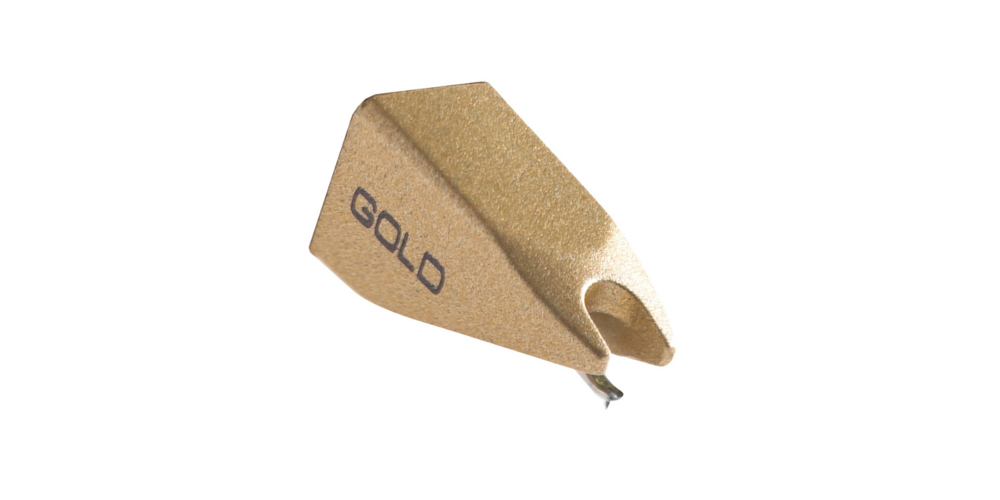

ORTOFON Aguja Gold Elíptica. Recambio para Capsula Concord Gold

ORTOFON Aguja Gold Elíptica. Repuesto para Capsula Concord Gold

• Aguja elíptica, ideal para Club
• Fuerza de tracción recomendada: 3,0 g
• Output voltage at 1000Hz, 5cm/sec: 6 mV.
• Channel balance at 1kHz: 1.5dB.
• Channel separation at 1kHz:23dB.
• Channel separation at 15kHz: 15dB.
• Frequency range at- 3dB: 20-22.000Hz.
• Frequency response: 20-15.000Hz +/- 2dB.
• FIM distorsion and recomended tracking force, DIN 45.542: <1%.
• Tracking ability at 315Hz recomended tracking force: 80m.
• Compliance, dynamic, lateral: 7m/mN.
• Stylus type: Special eliptical.
• Stylus tip radius: r/R 13/25m.
• Equivalent stylus tip mass: 0.5mg.
• Tracking force range: 2.0-5.0 g (20-50mN).
• Tracking force recommended: 3.0g (30mN).
• Tracking angle: 20º.
• Internal impedance. DC resistance: 750 Ohm.
• Internal inductance: 450 mH.
• Recommended load resistance: 47 kOhm.
• Recommendd load capacitance: 200-600 pf.
• Cartridge weight: 18.5g.
• Replacement stylus unit: Gold.
